Modelling of Tunnels construction by Dr Tony Swain

The following sequence of images does not show all loading blocks in SAGE-CRISP. Load blocks in which only consolidation time is applied are not shown.

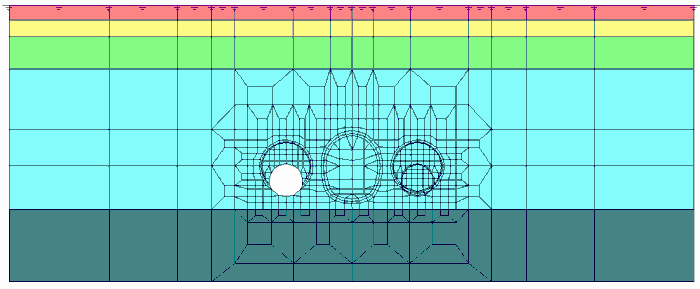

Stage 1 Excavate LHS Pilot (5hrs), also apply free drainage at top ground surface

{short description of image}

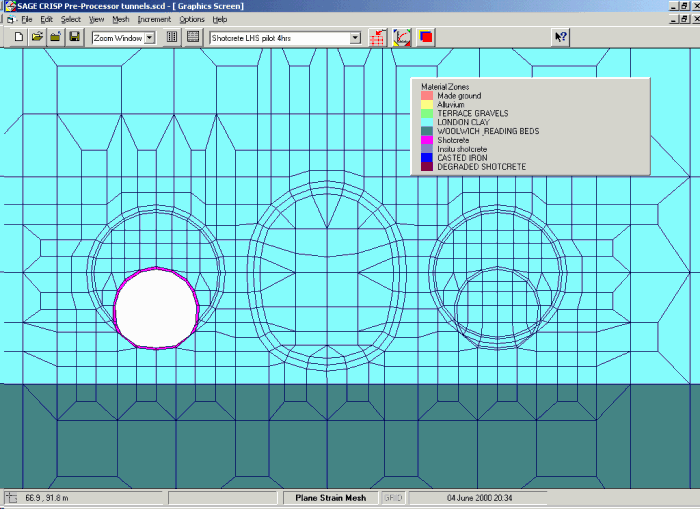

Stage 2 Shotcrete LHS Pilot (4hrs), followed by 2 week consolidation

{short description of image}

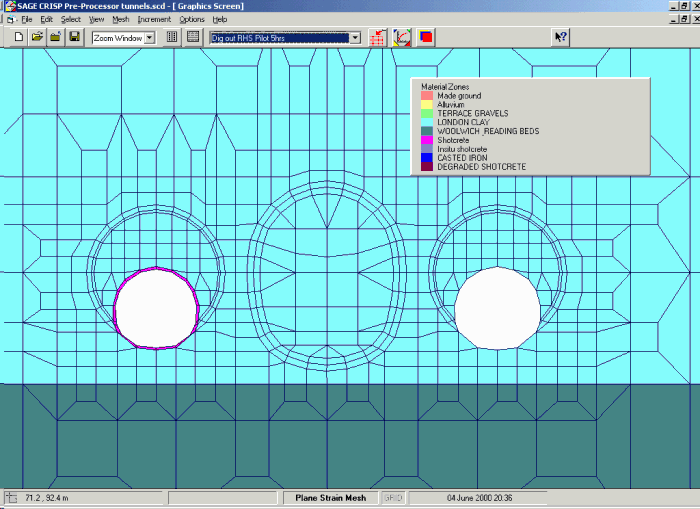

Stage 3 Excavate RHS Pilot (5hrs)

{short description of image}

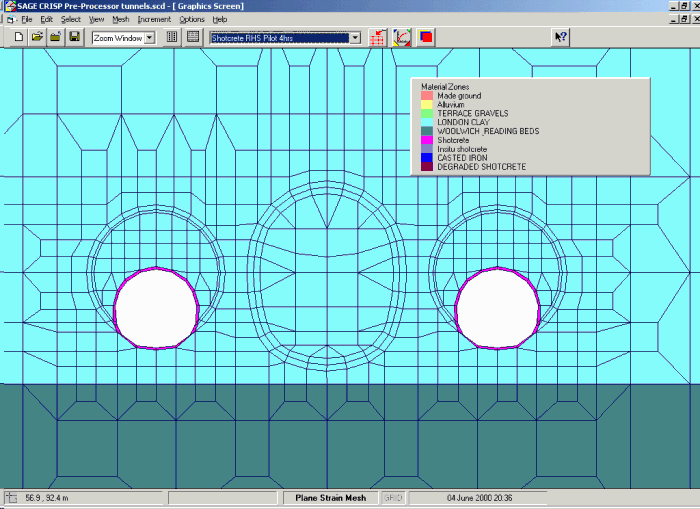

Stage 4 Shotcrete RHS Pilot (4hrs) followed by 8 week consolidation

{short description of image}

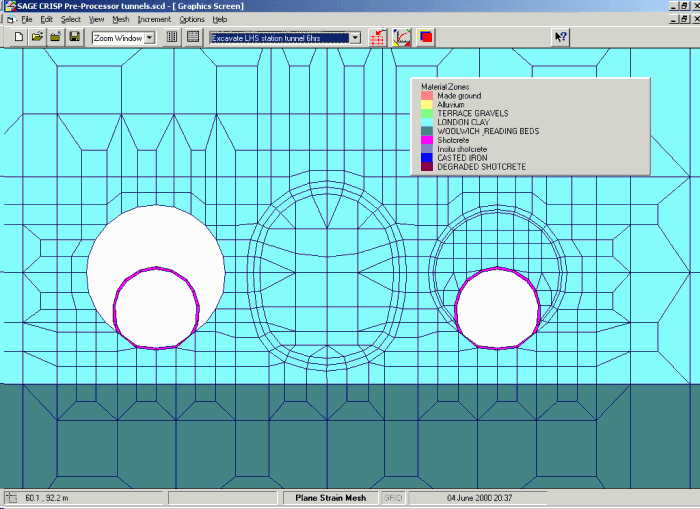

Stage 5 Excavate LHS station tunnel (6hrs)

{short description of image}

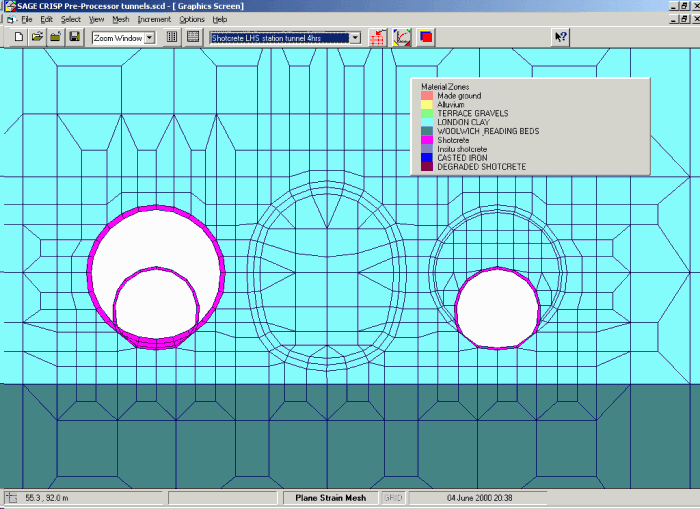

Stage 6 Shotcrete LHS station tunnel (4hrs) followed by 40 days consolidation

{short description of image}


Stage 7 Excavate RHS station tunnel (6hrs)

{short description of image}


Stage 8 Shotcrete RHS station tunnel (4hrs) followed by 40 days consolidation

{short description of image}

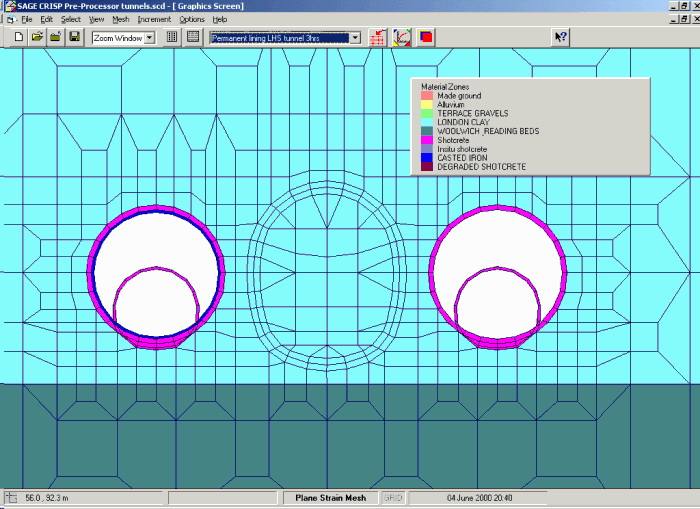

Stage 9 Apply permanent lining LHS tunnel (3hrs) followed by 40 days consolidation

{short description of image}

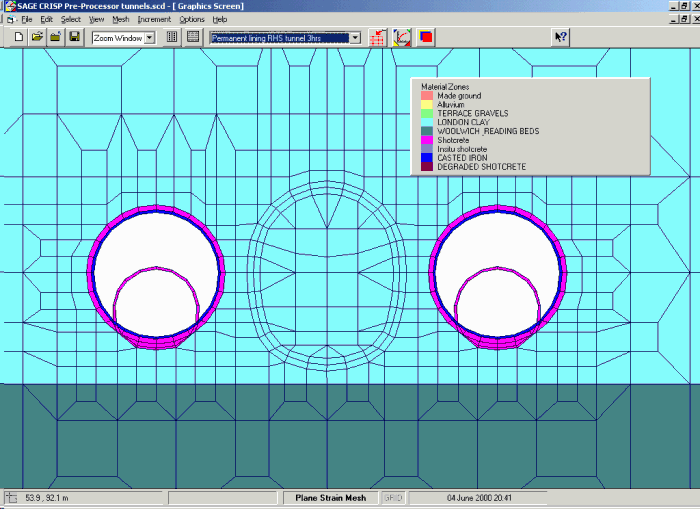

Stage 10 Apply permanent lining RHS tunnel (3hrs) followed by 40 days consolidation

{short description of image}

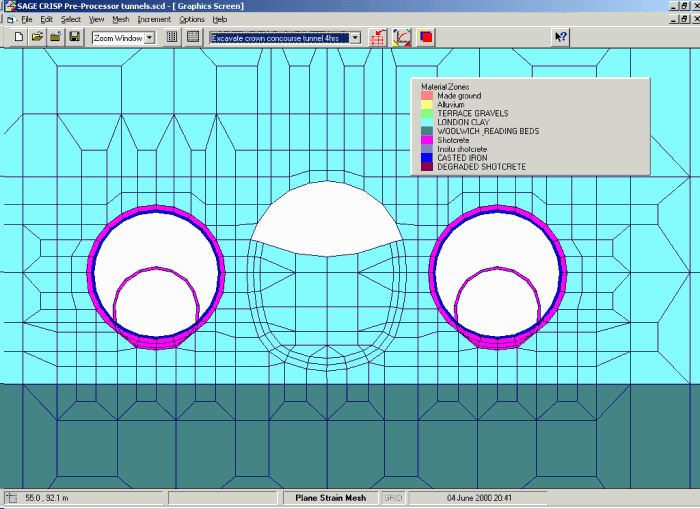

Stage 11 Excavate crown of concourse tunnel (4hrs)

{short description of image}


Stage 12 Shotcrete of crown of concourse tunnel (2.5hrs) followed by 6 days consolidation

{short description of image}

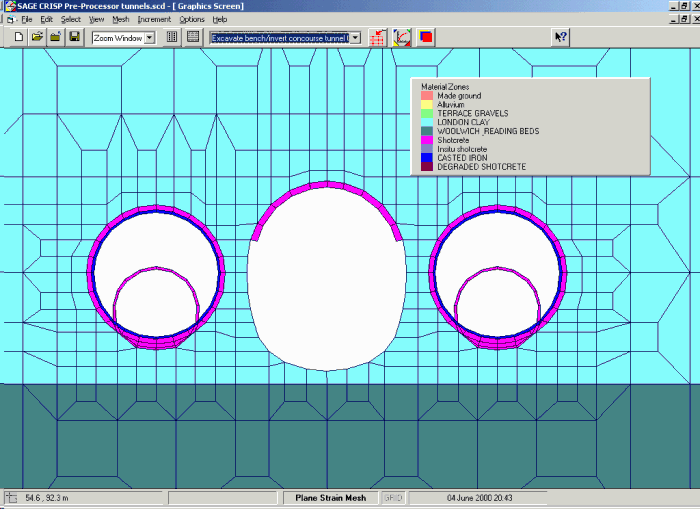

Stage 13 Excavate bench and invert of concourse tunnel (6hrs)

{short description of image}

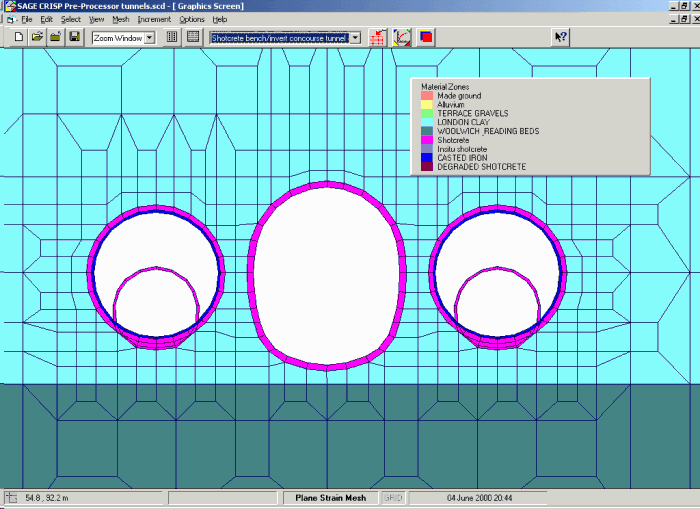

Stage 14 Shotcrete bench and invert of concourse tunnel (4hrs), followed by 3 months consolidation

{short description of image}

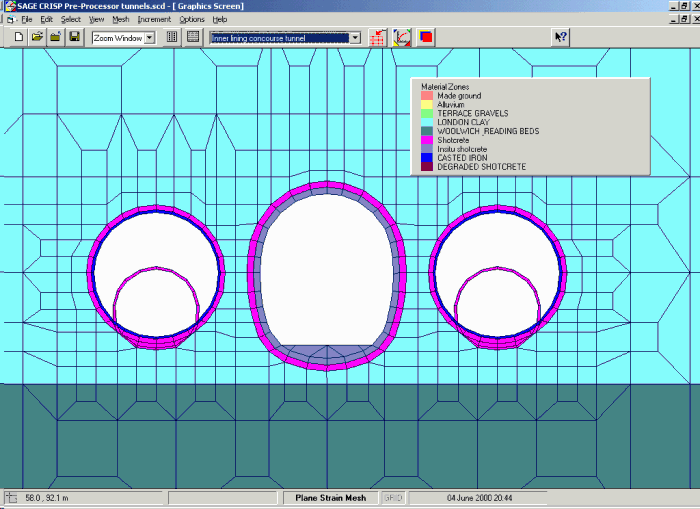

Stage 15 Construct inner lining of concourse tunnel, followed by 50 years consolidation

{short description of image}

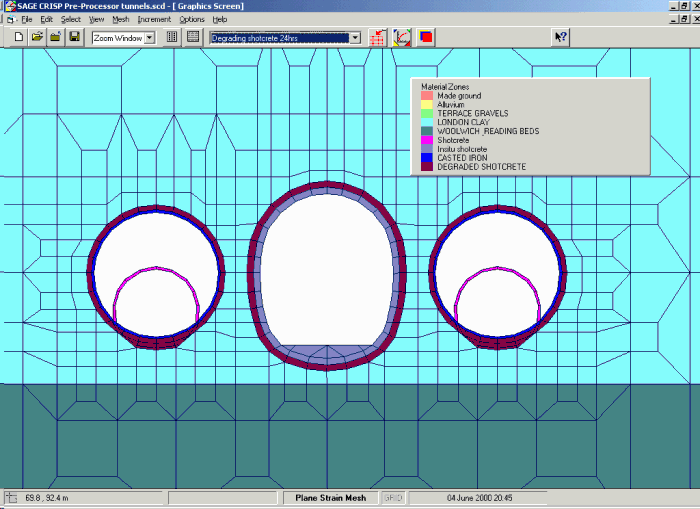

Stage 16 Simulate degrading of shotcrete followed by another 50 years consolidation

{short description of image}


Go on to see some results (6 images)
