Pipeline collapse load analysis

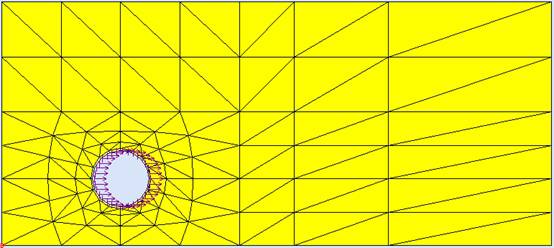

This project was carried out for Advantica and involved conducting a series of analyses to find the displacement-load response for a pipe subjected to horizontal or vertical movement. The mesh involves use of interface elements to simulate the interaction between the pipe and soil. CC Ltd and Advantica are currently collaborating to produce a special version of CRISP which includes an advanced soil model for soil-pipe interaction and special mesh generation features for pipeline meshes








Analysis of pull out of footing of power pylon


This 3D CRISP analysis was conducted for Southampton University for client PowerGen. The analysis involves determining the force-displacement undrained response and observing pore pressure behaviour

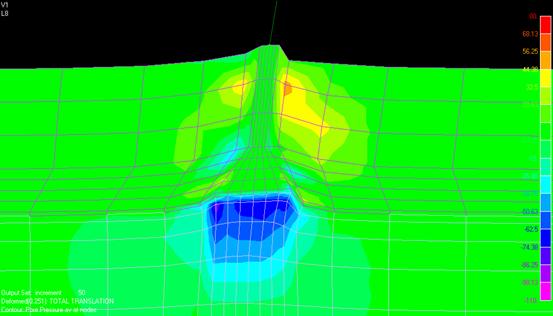

Pore pressure contours for footing during pull out showing maximum pore pressure beneath the footing.
